Bin/silo dust collector range

DUSTEX offers a range of silo dust collectors for silo venting and silo filtration for a range of industries.

Our silo dust collectors are designed and manufactured in New Zealand, and can be customised to suit your needs.



Silo ventilation with pulse jet cleaning

The pulse jet cleaning system provides efficient continuous silo filtration.

The silo dust collector is easy to maintain maintenance and service.

You simply loosen the hand wheel and valve gland to remove the blow tubes and access the filter elements.

The internally-mounted valves are protected from corrosive elements.



Construction

Fully welded 3mm plate.

The easy access hinged lid is sloped to avoid ponding.

Flexible fan location to suit site requirements.

Long-life industrial paint specification.

Robust filter element construction.

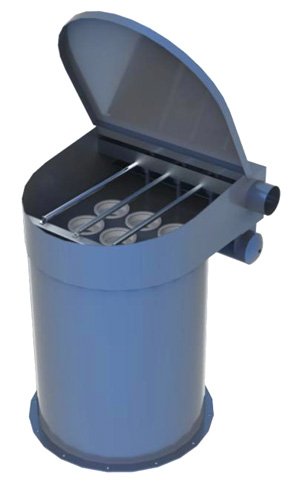

Bin/silo vent model BV9

Nominal airflow of 700 to 3,000 m³/hr depending on filter length.

Filter length options: 0.5, 1.0, 1.5 and 2.0 m.

Filter area options: 9.9, 20.7, 28.8 and 41.4 m².

Compressed air requirements 5.5 m³/hr (3-4 cfm) at 5 Bar clean and dry.

99.99+% filter efficiency.

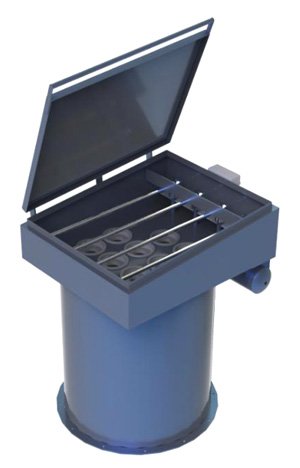

Bin/silo vent model BV12

Nominal airflow of 1,000 to 4,000 m³/hr, dependent on filter length.

Filter length options: 0.5, 1.0, 1.5 and 2.0 m

Filter area options: 13.2, 27.6, 38.4 and 55.2 m²

Compressed air requirements 7.0 m³/hr (4-5 cfm) at 5 Bar clean and dry.

99.99+% filter efficiency.



Additional options for BV9 and BV12

The fan supplied with your silo dust collector would suit your specific dust or fume extraction needs.
