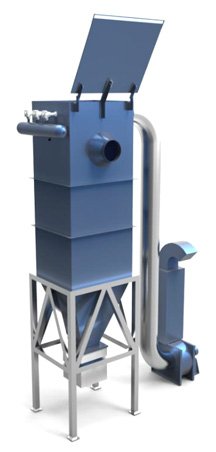

Industrial dust collectors with fan

This is one of our best-selling industrial dust collectors – and it’s designed and manufactured in New Zealand.

It’s a complete dust extraction system that suits most industry applications. The benefit of this industrial dust collector is that the fan and filter can be adapted to suit a wide range of dust and fume extraction needs.



Pulse jet cleaning system

The pulse jet cleaning system provides efficient, continuous air filtration.

Plus this industrial dust collector is easy to service and very low maintenance: you simply loosen the hand wheel and valve gland to remove the blow tubes and to access the air filter elements.



Duty

Nominal airflow of 1,000 to 30,000 m³/hr as standard. Or we can custom design this to suit your needs.

Filter quantity options 9, 12, 20, 24, 36, 48 off as standard – or we can custom design this to suit.

Filter length options 0.5, 1.0, 1.5 and 2.0 m standard or custom lengths up to 5.0m.

Filter area options range from 9.9 m² to 400 m².

Compressed air requirements 7.0 to 20.0m³/hr (4 to12 cfm) at 6 Bar clean and dry.

99.99+% filter efficiency.



Construction

Fully welded 3mm plate.

Easy-access hinged lids.

Flexible fan location to suit site requirements.

Long-life industrial paint specification.

Robust filter element construction.



Additional options for your industrial dust collector

Needlefelt bags and cages or pulse pleat filter elements.

Ladders and access platforms.

Dust explosion venting and protection.

The fan supplied would suit your specific dust or fume extraction needs.

Contact us to find out more about how this industrial dust collector could work for you

 We’ll be happy to help you.
