Welding fume extractor:
Clear the air in your workshop
Every weld you strike sends fumes into the air around you, and breathing that in, week after week, isn't something to shrug off. This welding fume extractor gives you a simple, mobile way to pull those fumes away from your face and out of your workshop, whatever you're running: MIG, TIG, arc, or stick.
It's a brand new unit, available now, and priced at NZ$7,500 + GST plus delivery - below what you'll typically pay for a comparable welding fume extraction system elsewhere.
Dustex has been designing, supplying, and installing dust and fume extraction systems from Auckland since 2009, working with industrial clients across New Zealand, from metal fabricators and foundries to food processing and manufacturing plants. When you call, you'll be speaking directly to one of the engineers behind the equipment.
NZ$7,500 + GST (delivery quoted separately) - Available now.
Call 09 948 1664 or email sales@dustex.co.nz to enquire.
Why do welding fumes need to be extracted?
Welding fumes aren’t just an irritation: WorkSafe New Zealand identifies them as a health hazard that can cause both short-term and long-term harm. Manganese in particular has been linked to serious neurological effects with ongoing exposure.
Under New Zealand's health and safety legislation, you have a duty to eliminate or minimise your team's exposure to welding fumes so far as is reasonably practicable. A mobile welding fume extractor is one of the most practical ways to meet that duty, especially if your workshop doesn't already have fixed extraction built in. If you're after something more permanent, Dustex also designs and installs bespoke dust and fume extraction systems tailored to your workshop.
For the full picture, see WorkSafe New Zealand's guidance on welding health and safety.
Will this welding fume extraction system suit your workshop?
It's a good fit if you:
- Run a fabrication or engineering workshop where welding happens most days.
- Weld on the move or on-site, and need a portable welding fume extraction unit that comes with you rather than a fixed extraction point.
- Are upgrading from no extraction at all, or from an ageing or undersized system.
- Want one machine that handles welding fumes as well as general light workshop dust, rather than running two separate systems.
What do you get with this welding fume extractor?

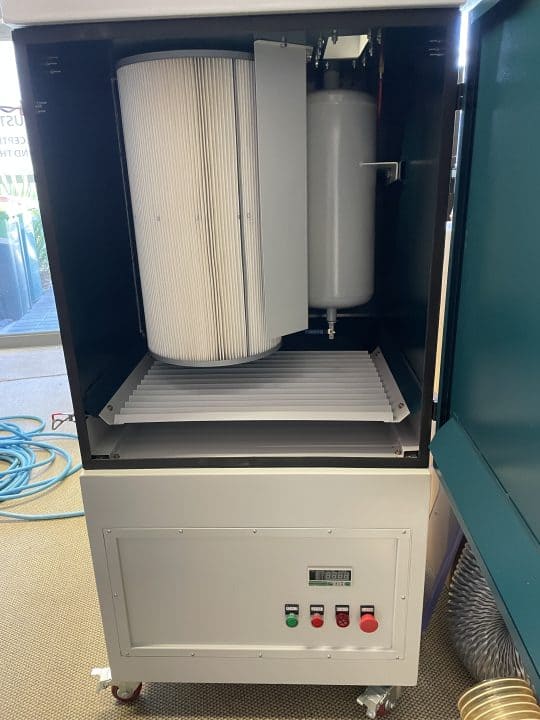

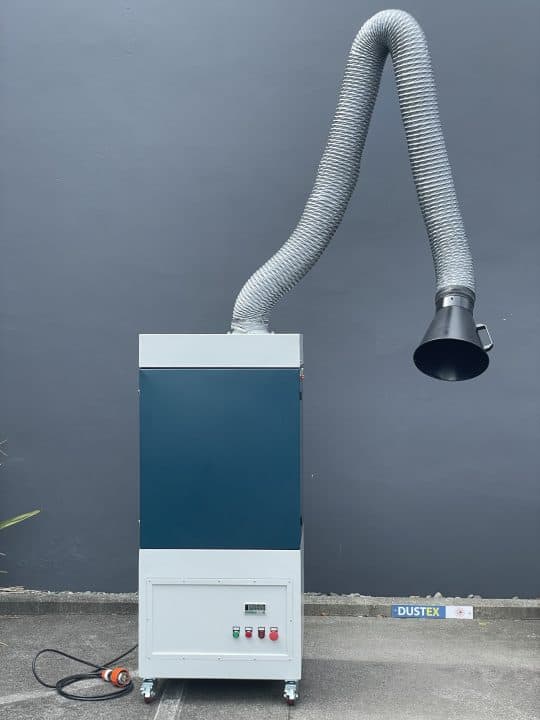

This is a self-contained, mobile welding fume extraction unit built around a pulse-jet self-cleaning filter. Everything you need runs from the one cabinet on castors, so you can wheel it to wherever the welding is happening rather than being tied to a fixed extraction point.
The flexible extraction arm lets you position the hood close to the work, which is where fume capture is most effective. It uses a pleated filter cartridge, and controls are kept simple: start, stop, and an emergency stop button on the front panel, with a factory-set pulse cleaning cycle that keeps the filter clear without any input from you.
As well as a power connection, it needs a compressed air supply connected via an 8mm push-fit hose - this drives the pulse-cleaning system that keeps the filter clear. If your workshop doesn't already have a compressor, you'll need one to run this unit.
Why choose this welding fume extractor?
- Mobile, so it wheels straight to the job with no fixed ductwork required.
- Self-cleaning pulse-jet filter, factory set and ready to go.
- Simple controls: start, stop, and E-stop.
- Suitable for MIG, TIG, arc, and stick welding.
- Doubles as a light dust extraction system for general workshop use.
Welding fume collector specifications
| Model | DFC-ZD-1.2K |
| Design airflow | 1,200 m³/hr |
| Design filter velocity | 45 mm/s |
| Construction | Mild steel, painted |
| Control system | Timer-controlled pulse cleaning |
| Filter type | Pleated element (A-PET-2360 F4FR) |
| Filter area | 7.3 m² |
| Motor | 3-phase, 1.5 kW |
| Power supply required | 3-phase, 415V/50Hz |
| Air supply required | Compressed air connection (8mm PU air hose, push-fit).
Recommended compressed air supply: 100Litres/min @ 600 kPa |
| Unit dimensions (W x D x H) | 700 x 700 x 1600mm |
| Unit weight | 250kg |
How does this welding fume extractor keep running clean?
The pulse cleaning system continuously cleans the filter element while the unit runs, so you don't need to stop and clean it manually during the working day. The controller comes factory set, so it's ready to switch on and use straight away.
To start, you release the E-stop and press the start button. When you're finished, the stop button triggers a short automatic clean-up cycle before the unit switches off. It runs on a 3-phase, 415V/50Hz power supply.

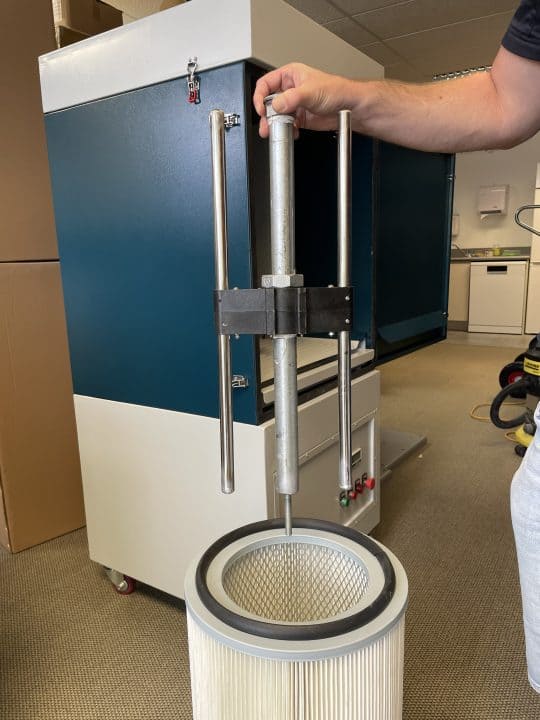

Need to check or replace the filter?
The filter (A-PET-2360 F4FR) lifts straight out of the cabinet for inspection or replacement, and the full step-by-step procedure is covered in the manual below. Replacement pleated filter cartridges are available from Dustex when the time comes.
Want the full operating and maintenance manual?
The full manual is available to download below, covering safety information, detailed operating instructions, the maintenance schedule, and the filter change procedure in full.
Frequently asked questions about this welding fume collector
Is this welding smoke collector suitable for MIG, TIG, arc, and stick welding?
Yes. This welding smoke collector is suitable for all common welding processes, including MIG, TIG, arc and stick welding.
Can a welding fume collector be used for general workshop dust as well?
Yes. As well as welding fumes, this unit is suitable for light general workshop dust, making it a flexible option if your workshop does more than just welding.
What power supply does this welding fume extraction system need?
It runs on a 3-phase, 415V/50Hz power supply.
Does this welding fume collector need compressed air?
Yes. The pulse-cleaning system runs on compressed air, connected via an 8mm push-fit hose. You'll need a compressor in your workshop to run it, alongside the 3-phase power supply. The recommended compressed air supply is 100Litres/min @ 600 kPa.
How much maintenance does this welding smoke collector need?
Very little day to day maintenance is needed. The filter cleans itself automatically while the unit runs. A short weekly check (covered in the manual) keeps everything running well, and the dust tray should be emptied regularly.
Do I need PPE to use this welding fume extraction system?
Yes, in addition to your usual welding PPE, appropriate PPE should be worn whenever removing dirty filter elements or whenever dust may be present. This can include dust masks, safety glasses, overalls, and gloves. Hearing protection is also recommended, since this unit is often installed alongside other noisy workshop equipment.
How often can I start and stop this welding smoke collector?
The fan motor shouldn't be started more than six times within a one-hour period. For most workshops running normal welding jobs this won't be an issue.
Can this welding fume collector be moved between work areas?
Yes. It's fitted with castors, so you can wheel this mobile welding fume extraction unit between work areas rather than having it fixed in one spot.
Is this welding fume extractor new?
Yes, it's a brand new unit.
Does this welding fume extraction system come with a warranty?
Yes, it comes with a 12-month warranty.
Is this welding fume collector available now?
Yes, this unit is available now at our Auckland warehouse.
Does Dustex deliver this welding fume collector?
Yes, delivery can be arranged from our Auckland warehouse. Get in touch for a delivery quote to your location.
